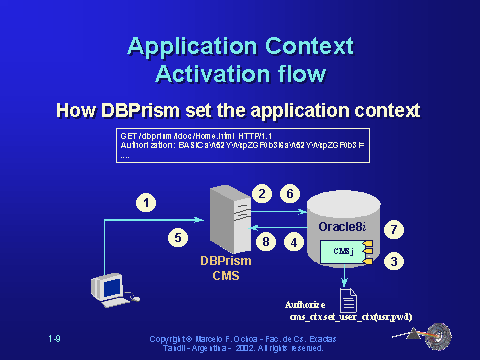

The above picture summarize the flow when a user try to access to the CMS through
path /dbprism/ldoc path (CMS directory with write access):
An HTTP request is sent for the url /dbprism/ldoc/Home.html, for example.
Cocoon process this request and execute, using DBPrism Generator, an stored
Procedure for getting the page content.
DBPrism Servlet Engine has a security setting for this url using per-package
authorization mode. It means that, for each package executed into the database
DBPrism will try to execute first a function Authorize which will return true or
false if the username/password sent by the browser in the header Authorization
is a valid CMS user. The CMS function authorize calls to the procedure cms_ctx.set_user_ctx
which validates the username and password against the VPD information and set the correct
context for the connection.
If no Authorization header was sent, a response with the HTTP status
Not authorized is returned. A this point the browser will ask to the user for the username
and password for the CMS.
A valid username and pasword is sent again with the original request.
With this new username/password information DBPrism will execute again the function
authorize.
If a valid username/password was sent, the Code of DBPrism CMS returns the content of
pages /Home.html
The XML content of the pages is sent back to Cocoon to assamble and transform to html
format. The html page is sent finally to the browser.
